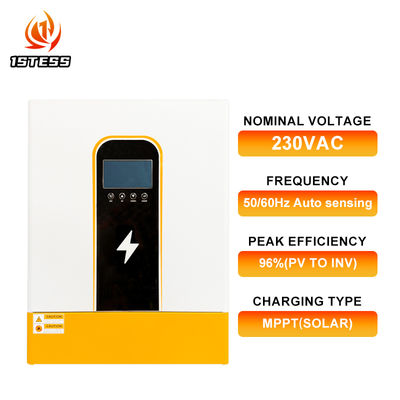

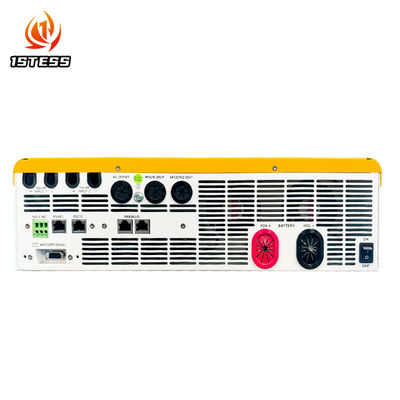

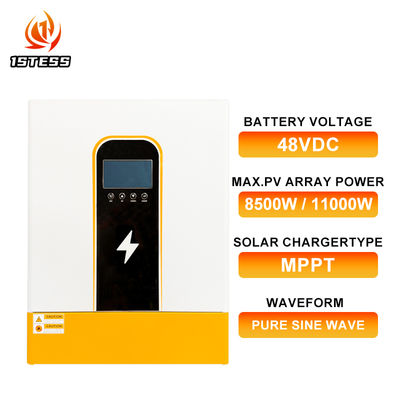

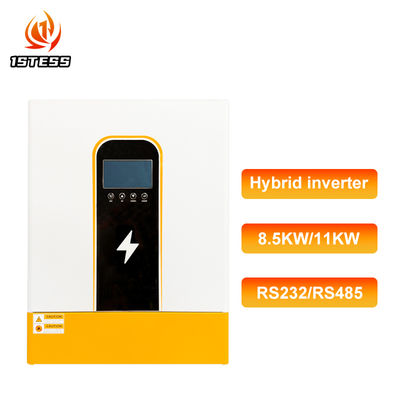

48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units

  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
  • 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units
Lugar de origem Guangdong, China
Marca COENG
Certificação CE, IEC
Número do modelo M11000T-48PL
Documento M series parallel capable 8...-5.pdf
Quantidade de ordem mínima 1
Detalhes da embalagem Carton, palete
Tempo de entrega 10-30 dias de trabalho
Termos de pagamento L/C, T/T, Western Union
Habilidade da fonte 20000 peça/mês

Contacte-me para amostras grátis e vales.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Tamanho 540*415*122 mm Tensão da bateria 48V
Tensão de entrada 230VAC OEM Aceite OEM
Tipo de inversor inversor solar híbrido Tipo de saída Onda sine sine única, pura
Peso bruto 15,5 kg
Destacar

48V hybrid solar inverter

,

11kW off grid inverter

,

dual MPPT solar inverter
Deixe um recado
Descrição de produto
M8500T-48PL M11000T-48PL
Model Number M8500T-48PL M11000T-48PL
Place of Origin China China
Mounting Method Wall Bracket Wall Bracket
Nominal Battery Voltage (V) 48VDC 48VDC
Parallel Capacity· YES, 6units YES, 6units
Lithium Battery activation YES( By PV or Utility) YES( By PV or Utility)
Nominal Voltage 230VAC 230VAC
Frequency 50/60Hz 50/60Hz
Waveform Pure Sine wave Pure Sine wave
Solar Charger Type MPPT MPPT
Communication Interface RS232+RS485+Dry-contact RS232+RS485+Dry-contact
PV Array MPPT Voltage Range 60VDC~500VDC 60VDC~500VDC
Surge Power 17000VA 22000VA

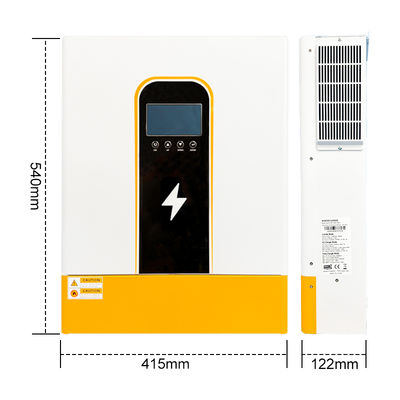

Size 540*415*122mm 540*415*122mm
Weight 14.5kg 15.5kg
Operating Temperature Range (-10'℃ to 50℃) (-10'℃ to 50℃)
Product Features.
  1. Dual AC output
  2. Built-in 2 MPPT
  3. Parallel max up to 6 units
  4. Lithium battery activation function by PV or Utility
  5. Compatible work with LiFePO4 battery via RS485
  6. Pure Sine Wave
  7. Power factor 1.0
  8. PV Input 500Vdc Max
  9. Built-in MPPT 140A/160A
  10. Capable to work without battery
  11. Detachable dust cover for harsh environment
  12. Wifi remote monitoring optional
  13. Support multiple output priority: SuB, SBU, SUF
  14. EQ function to optimize battery performance and extend lifecycle
48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 0 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 1 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 2 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 3 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 4 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 5 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 6 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 7 48V 11kw Hybrid Solar Inverter Single Phase Pure Sine Wave Off Grid with Dual MPPT Parallel 6 Units 8
Etiquetas:

inversor híbrido solar do mppt

Inversor híbrido solar da fase monofásica

Inverter Solar Híbrido para Casa
